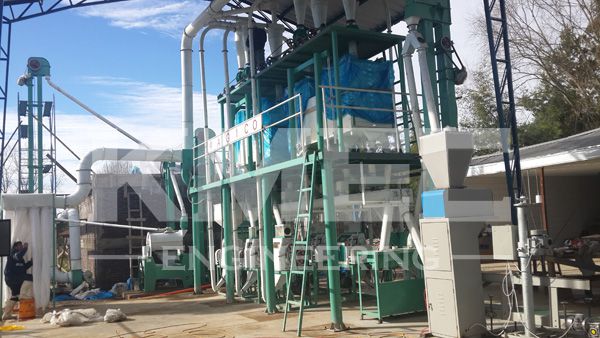

30 TPD Wheat Flour Mill Plant Project in Chile

This 30ton/d wheat flour mill line is in Chile. This project has been finished in July, 2014.

This wheat flour mill project include 6 sets of 6F2240/2235 flour milling machine, 2 sets of FSFG88 plansifter with two nest of sieve, the sifting surface is14.71sq.m., the roll total length of 220cm.

The cleaning section of flour mill project adopts twice screening, twice surface, twice stoner, once tempering, twice magnetic separation cleaning technology, and according to the air piping system design requirement, it divides into wheat transport and dedusting, the process design meets requirement of processing fine wheat flour.


What technology does this wheat flour mill project adopt?

It adopts screen outside classification, twice middling extraction to composed of 3B3M processing technology, the process fully consider the effect of wheat bran& graded flour separation to ensure the integrity of bran, the best result of increase purity of core and improve quality of graded flour., and ensure produce more flour and good flour.

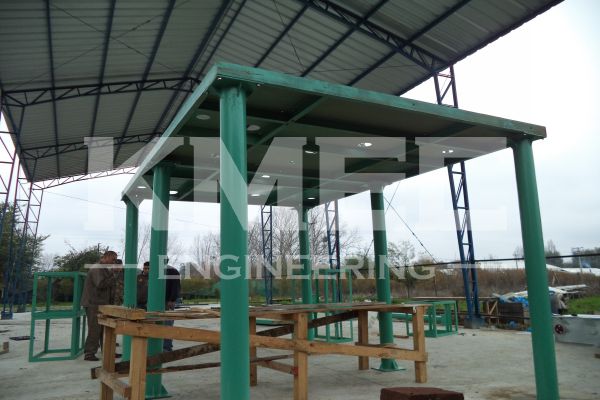

Making a installation plan and inform it to local workers.

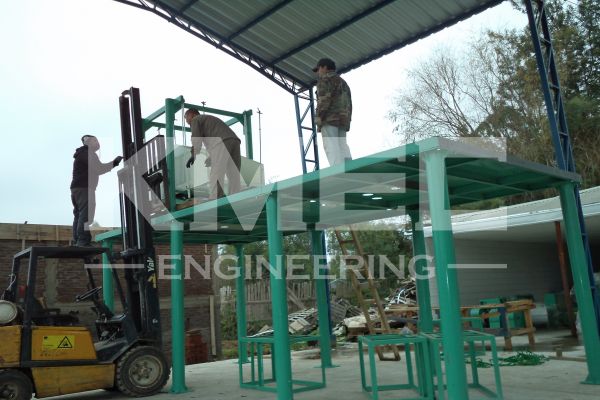

Building up the steel structure

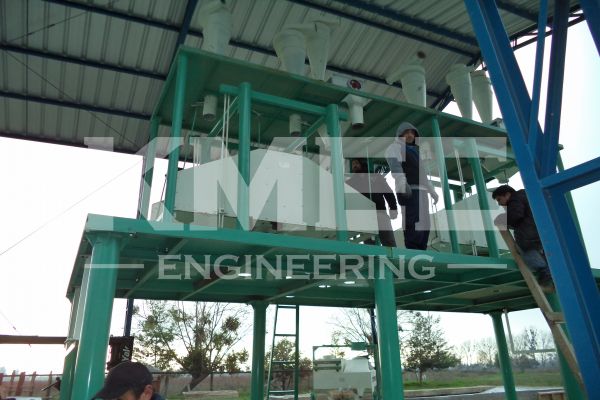

Place the machine on the steel structure one by one

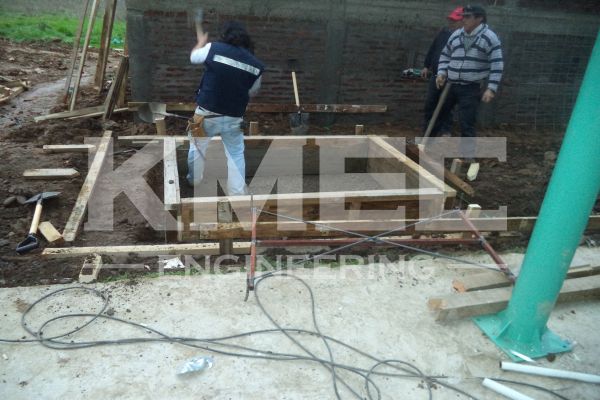

Construct a cement tempering silo

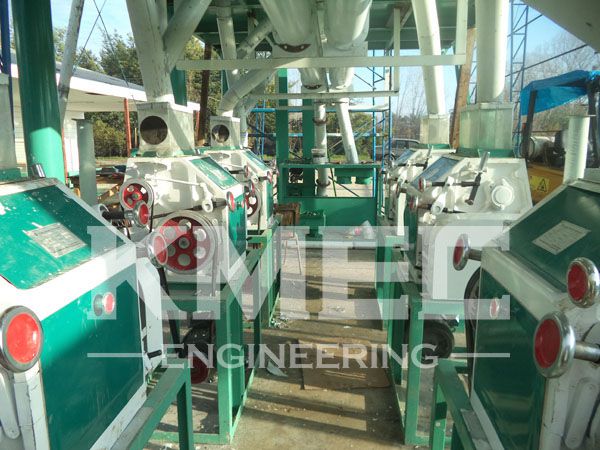

6F2240 flour milling machines


Output wheat flour


Auto packing machine can pack flour into bags
