Main Corn Mill Machines and Equipment Configuration
A corn mill operates through a precise multi-stage production system that transforms raw maize into various marketable products. The corn mill machine setup defines both yield and efficiency. The complete corn milling process includes four primary stages: cleaning, dehulling, grinding, and sifting. Each stage is interconnected through conveyors and automated control units.
In the cleaning phase, raw corn is screened and de-stoned to remove impurities, reducing contamination by up to 98%. High-efficiency vibrating separators can process 10–15 tons per hour, ensuring consistent feed quality for downstream systems. Dehulling removes the outer pericarp using mechanical friction, with modern dehullers achieving up to 95% peeling efficiency and only 3% kernel loss.
During grinding, the core mechanical operation of the corn milling process, roller mills and hammer mills reduce particle size from 3 mm to below 500 µm. Proper adjustment of rollers and airflow within the system maintains uniform granulation. In a 50 TPD (tons per day) corn mill plant, energy consumption typically averages 55–70 kWh per ton of product.
The final sifting and grading step separates the flour, grits, and bran fractions. Depending on mesh configuration (ranging from 30 to 200 mesh), output ratios vary between 60% flour, 30% grits, and 10% bran. The flexibility to alter these ratios allows producers to target different end markets, such as corn flour production lines or corn starch processing steps.

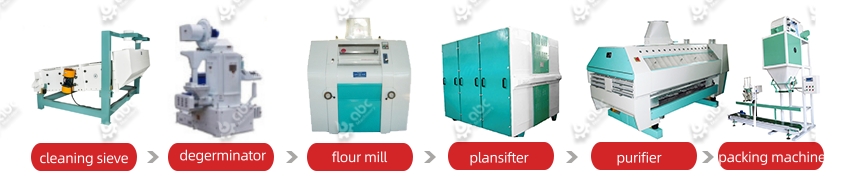

Corn Milling Machine Configuration by Process Flow
Optimizing the sequence of machines directly impacts cost and yield. A streamlined process layout can increase throughput by 12–18% while lowering maintenance intervals by 15% annually.
Every efficient corn milling process overview must link mechanical precision with smart workflow management. Boost your plant performance with our engineered corn mill system – Contact our specialists to plan your customized layout today.
Efficient plant setup depends on selecting the right corn mill machine types. Each equipment category serves a unique role in the industrial milling system.
High-capacity cleaning systems, such as vibrating screens and destoners, eliminate dust, husks, and stones. For instance, a double-layer vibrating separator processes up to 20 tons/hour with 99% impurity removal. Air suction channels and magnetic separators ensure metal-free input, preventing wear on core machines.
The heart of the plant is the industrial corn milling system, which usually combines roller mills and hammer mills. A six-roller mill delivers particle size control within ±50 µm, while hammer mills operate at rotor speeds of 3,000 rpm to achieve fine grinding for flour-grade materials. These configurations influence final product fineness and starch damage ratio (ideally under 6%).
| Equipment Type | Typical Capacity (t/h) | Power Requirement (kW) | Efficiency (%) |
|---|---|---|---|
| Vibrating Cleaner | 8–15 | 5.5–7.5 | 98 |
| Destoner | 6–12 | 4.0 | 97 |
| Roller Mill | 4–10 | 30–45 | 96 |
| Hammer Mill | 3–8 | 37–55 | 95 |
| Plansifter | 6–12 | 11–18 | 98 |
The final stage includes plansifters, gravity separators, and automated bagging machines. An automatic flour packaging machine unit with PLC control fills 25–50 kg bags at up to 10 bags per minute, ensuring consistent accuracy within ±0.2 kg.

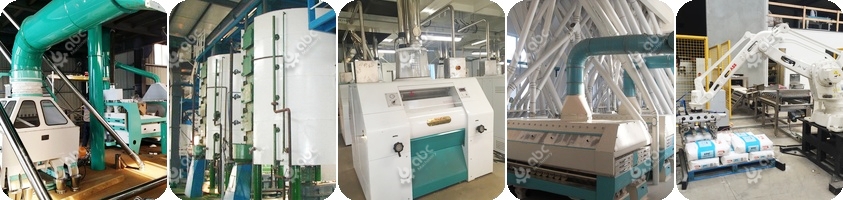

Maize Flour Milling Plant Equipment Layout
Integrating cleaning, milling, and packaging systems within one modular framework minimizes downtime and reduces operational energy costs by up to 22%. A well-calibrated **corn mill machine** network ensures stable throughput even under variable load conditions.
Get your customized industrial corn mill machine selection guide – Speak with our engineering team now to configure your high-performance system.
A complete corn mill plant automation system involves three design layers: equipment configuration, process layout, and control integration. Plants with 20–100 TPD capacity typically adopt modular setups to scale output efficiently. Each module includes a cleaning section, milling section, and packaging section, linked via pneumatic conveyors.
Automation through MES (Manufacturing Execution System) and PLC (Programmable Logic Controller) technology enables real-time data tracking for moisture (within ±0.5%), energy use, and throughput. This digital supervision reduces unplanned downtime by 25% and cuts energy waste by 10%. Energy-efficient milling process optimization—using variable frequency drives—can save up to 12 kWh/ton.
Compact plant layouts with vertical material flow also minimize footprint by 30% and shorten conveyor paths by 20 meters per line. Connect with our process engineers today to design a smart, energy-efficient corn mill line that maximizes production yield and reliability.
Ensuring consistent corn flour quality control depends on fine-tuning machine settings and scheduling regular maintenance. Grinding roller alignment, sifter mesh replacement every 800 operating hours, and bearing lubrication every 200 hours prevent performance drop. High-precision NIR (Near-Infrared Reflectance) analyzers track flour purity at 99.5% confidence.
Routine corn milling machine maintenance programs typically reduce downtime by 18% and extend component lifespan by 25%. In modern facilities, predictive maintenance based on vibration data helps pre-detect wear in critical gear assemblies.
Secure superior product consistency and operational reliability – Consult our maintenance experts to optimize your corn mill service schedule.
corn mill systems continue to evolve toward automation and energy efficiency. By integrating the right corn mill machine configuration, plant owners can achieve up to 20% higher capacity and 15% lower operational costs.
