Corn Flour Mill Automation Control System

Corn Flour Mill Automation PLC Control System

Value and Trend of Automation Systems in Corn Flour Mills

Modern corn mill operations are rapidly evolving through the integration of intelligent automation. In 2024, over 82% of new fully automatic flour mill plants globally adopted at least one level of PLC-based control system, reflecting a 25% increase compared to 2019. This transformation is driven by the need for consistent quality, lower labor dependency, and optimized energy efficiency—factors that are essential in competitive industrial processing environments. The adoption of a corn flour mill control system not only enhances precision in batch control but also ensures real-time monitoring across multiple processing lines.

The global automation trend in corn flour mills highlights the transition from isolated machine control to plant-wide digital supervision. Modern PLC and HMI (Human-Machine Interface) technologies enable synchronized control of cleaning, grinding, and sifting processes. Combined with SCADA (Supervisory Control and Data Acquisition) systems, operators can visualize and manage production data across different production zones.

Enhance your mill’s efficiency and reliability—consult our automation engineers to design a tailored corn flour milling plant with PLC control system today.

PLC System Architecture and Core Components in Corn Flour Milling

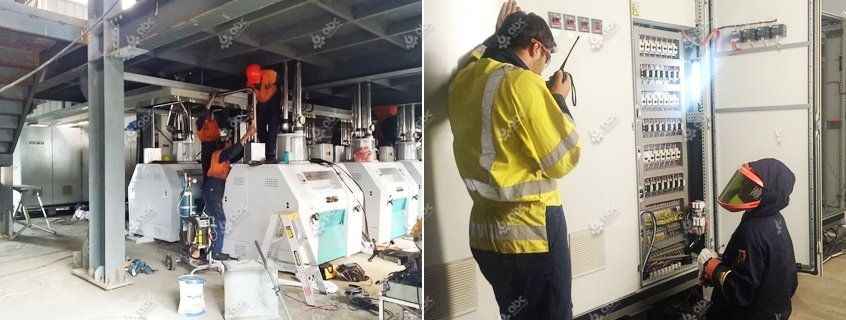

Automated Corn Flour Mill Plant for Sale

A robust corn flour mill control system relies on well-engineered PLC architecture that ensures seamless coordination among all processing units. This section outlines the essential design considerations and technical structure used to achieve automation excellence in modern corn flour mills.

PLC and HMI Integration

A standard corn flour mill PLC architecture includes one master PLC, three I/O modules, and two industrial HMIs for corn flour milling process visualization. Each HMI screen displays real-time parameters such as feed rate (in tons/hour), motor load (in kW), and temperature (in °C). Communication between PLC and HMI is typically established via Ethernet/IP or Modbus TCP, ensuring response times below 50 milliseconds for precise control.

Sensors, Actuators, and Control Logic

Critical instrumentation in the control loop includes load cells (±0.1% accuracy), vibration sensors, and optical particle detectors for flour quality monitoring. The PLC processes over 300 digital signals and 50 analog inputs per production line to coordinate dosing, grinding, sieving, and pneumatic conveying systems.

Table 1. Key Components of a PLC-Based Corn Mill Control System

Safety and Electrical Design Considerations

In electrical cabinet design, redundancy and safety are prioritized. For example, each power section includes thermal overload relays, short-circuit protection (10 kA rating), and emergency stop circuits per IEC 60204-1 standards. Cable routing uses color-coded control lines and shielded analog wiring to minimize interference.

• Power Distribution: Modular MCC panels with individual circuit protection.
• Grounding Design: Resistance < 5 Ω ensuring equipment safety.
• Panel Cooling: Forced-air ventilation maintaining temperature below 40°C.

Through well-structured PLC control panels, engineers can achieve superior reliability and maintainability during both commissioning and long-term operation.

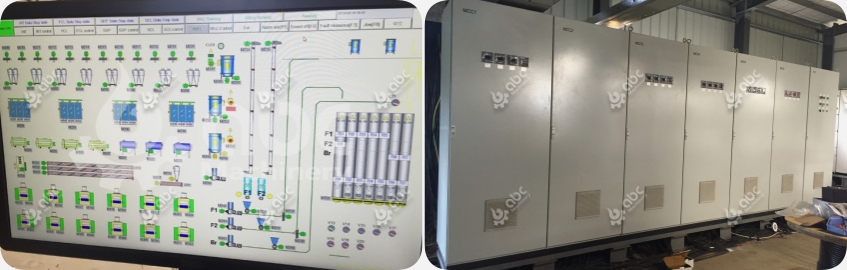

Corn Mill Control Panel

Get Your Custom PLC and Control Design for your corn mill plant—Connect with Our Engineering Team Now.

Corn Milling Process Automation and Equipment Interlock Control

Automation in each corn flour milling stage ensures smooth equipment coordination and prevents downtime. In cleaning, gravity separators and magnetic units operate under a unified logic where the conveyor halts automatically if the separator sensor detects overflow. During milling, the PLC adjusts roller pressure dynamically within a ±2% tolerance, maintaining consistent granulation size.

In pneumatic conveying and sifting, pressure sensors communicate with airlock valves to sustain airflow stability around 1,200 m³/h. Interlock logic ensures that the cyclone and bag filter operate synchronously, preventing dust emission peaks. Such process automation in corn flour mills directly improves production consistency and reduces material losses by up to 5%.

Ensure uninterrupted production with intelligent interlock control—partner with us for your next automation upgrade.

Maintenance and Remote Monitoring of PLC Systems in Modern Corn Flour Mill Plant

Effective maintenance and remote monitoring are crucial for sustaining long-term operational efficiency. PLC diagnostics record over 200 alarm types, from motor overload to sensor failure, stored with timestamps and maintenance notes. Remote monitoring solutions connect via VPN-secured gateways, allowing engineers to access plant dashboards and update control logic remotely.

Integration with cloud-based SCADA platforms enables performance comparison across multiple plants, using KPIs like output per shift and power consumption ratio. Smart factories using these systems reported an average downtime reduction of 22% after implementing automated fault analysis and predictive maintenance.

Upgrade to a smart remote monitoring solution—reach out to our automation specialists to future-proof your corn milling operations.

In summary, the integration of an advanced corn flour mill control system represents a major leap toward digital transformation in the corn mill industry. From PLC-based architectures to cloud-enabled monitoring, every component enhances production stability, safety, and efficiency.
