Corn Mill Energy Consumption and Energy-Saving System Design

Corn Mill Energy-Saving and Power Consumption Optimization Design

Corn Mill Energy Consumption Structure and Main Power Demand Areas

A modern corn mill plant typically consumes between 65 and 90 kWh per ton of processed corn, with more than 70% of this energy used in mechanical processing and air handling systems. Understanding this consumption structure is critical for effective corn mill energy saving planning.

The main energy consumers include the crushing section, corn grinding machines, airflow transport systems, and dust collection units. For instance, a single roller mill operating at 150 kW can consume up to 25% of total plant energy during continuous operation. The airflow and pneumatic conveying systems contribute another 20% to 30%, mainly driven by large-scale fans running at high speeds to maintain material transport efficiency.

In addition, auxiliary systems such as air compressors and lighting networks account for 5%–10% of the total electricity use. Studies show that inefficient compressor operation alone can waste up to 12% of total plant electricity annually.

Identifying which process nodes cause the highest losses—particularly in airflow and grinding—is the foundation for any energy optimization strategy.

Partner with our technical experts to evaluate your plant’s power profile and design a tailored energy optimization roadmap.

Energy-Efficient Design of Corn Grinding and Power Systems in Mill Plants

Start Profitable Corn Processing Plant Setup Business

Optimized Grinding and Pneumatic Matching

Efficient grinding systems are the core of corn mill energy saving. When roller corn mills and pneumatic conveyors are not properly matched, energy waste increases significantly—often by 15% or more. Using high-efficiency grinding rollers with precision airflow control can reduce power demand from 30 kWh/ton to 22 kWh/ton, depending on product fineness.

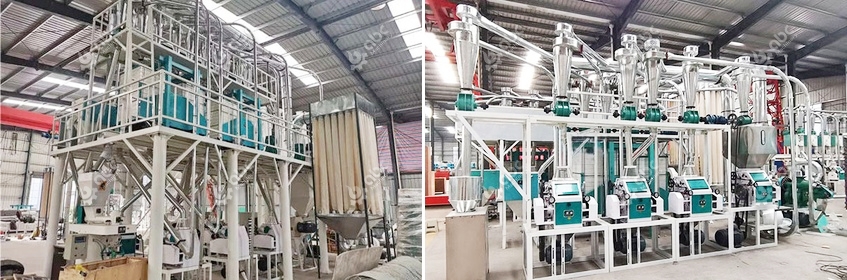

Variable Speed Drives and Motor Selection

Upgrading to variable speed drive (VSD) motors enables operators to adjust motor torque according to load requirements. For example, using VSD-controlled 110 kW fans reduces idle operation power by up to 40%, saving more than 60,000 kWh annually in a 300-ton-per-day facility. Moreover, IE3 or IE4 class motors offer efficiency levels above 92%, further cutting power losses in continuous operations.

Power Distribution and Layout Optimization

A well-structured power system layout minimizes energy loss through cable runs and transformer inefficiencies. Locating major equipment within 30 meters of main power distribution centers can reduce transmission loss by 2%–3%. Additionally, reactive power compensation devices ensure a power factor above 0.96, avoiding penalty charges and boosting electrical stability.

Integrating these design principles ensures energy savings of 15–25% across most modern corn mill facilities. Get Your Customized Energy-Efficient Milling Line Design – Contact Us Now.

Energy Optimization of Ventilation and Dust Collection Systems

Small to Medium Scale Maize Flour Production Line For Sale

The ventilation and dust removal network is another major power consumer in corn processing facilities. Airflow systems in a 200-ton-per-day corn mill can consume up to 25,000 kWh per month, primarily from high-pressure fans and dust collectors. Optimizing airflow design by zoning operations allows inactive sections to run at 30% lower power, significantly cutting waste.

Advanced variable speed fan control and pressure zone balancing reduce the average static pressure loss from 2,200 Pa to 1,500 Pa, translating to an 18% reduction in total airflow energy use.

Implementing smart dust collection units equipped with bag filters and automatic flow adjustment can save another 10%–12% of system power. Balancing dust capture efficiency (≥99.8%) with minimal air resistance is key to both safety and energy efficiency.

Enhance your plant’s air system efficiency with our engineered ventilation optimization services today.

Heat Recovery and Energy Management System Integration

Integrating heat recovery with plant-level energy management systems (EMS) allows for comprehensive monitoring and reuse of thermal resources. In corn drying or steam-based conditioning, exhaust air at 90–120°C can recover up to 35% of usable heat energy when properly captured.

A dual-cycle recovery setup reuses waste heat from exhaust ducts to preheat process air, saving approximately 12–15 kWh per ton of corn. Modern EMS platforms synchronize with MES (Manufacturing Execution Systems) to track energy KPIs in real time and compare line-by-line efficiency.

Plants implementing this integration have achieved average energy cost reductions of 20% within the first year. Combining data monitoring with automated load balancing transforms energy management from reactive to predictive control.

Connect with our engineering team to integrate intelligent heat recovery and EMS technologies into your corn mill project.

In summary, a comprehensive corn mill energy management strategy combining optimized equipment design, airflow control, and system integration can achieve up to 30% overall power reduction while improving operational stability and product consistency. The path to corn mill energy saving starts with precise energy mapping, smart system upgrades, and sustainable engineering implementation.
