Corn Mill Layout Design and Space Planning
A well-structured corn mill layout design defines the foundation of efficient industrial operations. For a corn mill handling 50 to 300 tons of raw corn per day, spatial configuration determines the production throughput, energy consumption, and equipment lifespan. Proper layout design aligns every unit—from cleaning, conditioning, degermination, to grinding and packaging—ensuring a continuous process flow and minimal material backtracking.
The first step in industrial corn mill plant layout design principles is mapping the material movement and process sequence. The corn milling process flow diagram (PFD) typically includes 5 major sections: raw material intake, pre-cleaning, milling, blending, and packaging. For instance, maintaining a direct line flow between the cleaning and milling sections reduces material handling time by 15–20%. Meanwhile, integrating gravity flow design can cut power usage by 8–10% per ton processed.
The process flow diagram acts as both a technical blueprint and a communication tool between design engineers and production managers. A well-optimized flow map may reduce inter-equipment transfer distance by 30–40%. Engineers often use 2D CAD or 3D BIM (Building Information Modeling) tools to visualize layout efficiency and ventilation paths. These diagrams also assist in planning maintenance zones and ensuring compliance with food safety regulations such as ISO 22000 and HACCP.
60TPD Corn Flour Mill Project from Design to Construction
| Stage | Typical Equipment | Space Required (m²) | Power Load (kW) |
|---|---|---|---|
| Cleaning & Conditioning | Vibrating separator, aspirator | 45–60 | 25–30 |
| Milling & Grinding | Roller mills, sifters | 80–120 | 65–90 |
| Packaging & Storage | Bagging machines, silos | 60–90 | 20–25 |
| Utilities & Maintenance | Air compressor, water tank | 40–55 | 15–20 |
The alignment of production lines affects both throughput and operating cost. For example, a straight-line layout is 18% more energy-efficient than a loop configuration due to reduced conveyor usage. A facility with a 120-ton daily capacity can save up to 1,500 kWh/month by optimizing motor load distribution.
When designing an industrial corn mill, engineers should prioritize: 1) uniform material flow with minimal bottlenecks, 2) balanced spacing between major machinery (typically 1.2–1.5 meters), and 3) temperature-controlled zones around grinding sections to maintain product consistency.
Partner with our industrial design team to develop a high-performance corn mill layout that maximizes yield and minimizes operational energy costs.
Effective corn mill factory space optimization ensures both material and personnel flow are harmonized. In a 3,000 m² factory, zoning is typically divided into 60% for production, 25% for utilities and logistics, and 15% for staff and safety areas. Separating material flow from personnel routes can improve safety compliance by 35%.
Efficient production layouts also consider vertical design—placing silos above grinding systems reduces conveyor distance by up to 40%. Integrating automated palletizing systems can boost packaging efficiency by 25%.
Boost your mill’s throughput and ensure safe, lean operations—consult our experts for a tailored automated corn mill layout system today.

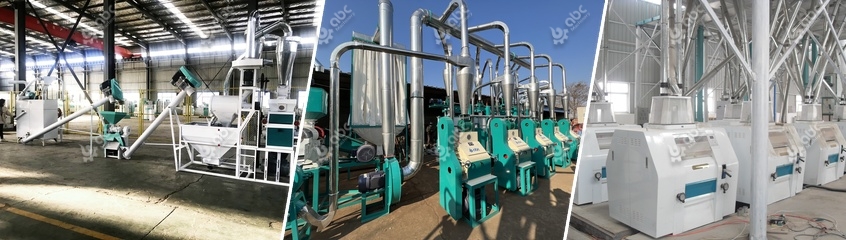

Mini, Small to Medium, Large Corn Mill Plant for Sale
The layout requirements for a small scale corn mill layout differ greatly from those of a large industrial facility. Small plants (10–20 TPD) prioritize modular setups and lower initial investment, while large capacity mills (200–500 TPD) emphasize automation and silo integration.
| Plant Type | Capacity (TPD) | Floor Space (m²) | Estimated Setup Cost (USD) |
|---|---|---|---|
| Small-Scale Mill | 10–20 | 800–1200 | 150,000–250,000 |
| Medium-Scale Mill | 50–100 | 2000–3500 | 400,000–700,000 |
| Large Industrial Mill | 200–500 | 6000–9000 | 1.2–2.5 Million |
Large capacity corn mill design projects require high-capacity roller mills (5–8 tons/hour) and automated blending systems with NIR (Near-Infrared Reflectance) analyzers to ensure product uniformity. Get a detailed cost-benefit comparison and design proposal customized for your target production scale—contact our engineering team now.
A successful factory design transitions smoothly from concept to implementation. Professional corn mill engineering services involve on-site evaluation, 3D modeling, and construction supervision to ensure accuracy between design and execution.
Coordination between civil engineers, mechanical designers, and project managers is critical during the installation phase. Accurate elevation mapping ensures grain transport angles remain below 60°, minimizing mechanical stress and improving throughput by up to 12%.
Before commissioning, layout adjustments should verify utility line routing, machine anchoring, and alignment calibration. Our field engineers conduct real-time audits and airflow simulations to enhance energy efficiency and dust control across processing zones.
Energy-saving retrofits, such as integrating VFD-driven motors and smart ventilation, can cut operational energy use by 10–15%. Moreover, ergonomic workspace layout reduces worker fatigue and boosts output consistency.
Ensure your corn mill factory layout performs as efficiently in operation as it does on paper—connect with our engineering consultants for end-to-end factory layout optimization consulting.
Corn mill layout optimization isn’t just about physical space—it’s about engineering precision, energy balance, and long-term scalability. A well-executed corn mill layout design ensures safety, cost savings, and consistent production quality—laying the foundation for a sustainable and competitive industrial operation.
