Corn Storage Silo and Conveying System Design
Efficient material handling plays a decisive role in every corn mill operation. In large-scale plants processing over 100 tons per day, optimized material flow determines yield, energy use, and overall production stability. A well-engineered corn storage silo system ensures consistent feedstock availability and maintains grain quality before milling begins.
The role of silos extends beyond basic storage. In modern facilities, each silo compartment—often between 500 m³ and 2,000 m³—serves a distinct function: raw corn receiving, cleaning buffer, and conditioned grain holding. With automated level sensors, operators can achieve real-time control over corn mill material flow optimization, minimizing downtime caused by uneven supply or unexpected blockages.
Grain conveying efficiency improvement is equally critical. A well-balanced transfer system reduces spillage losses by 1–2% and prevents material segregation during movement. By combining mechanical and pneumatic conveyors based on layout and distance, engineers can optimize energy consumption while ensuring reliable throughput.
Increase your plant reliability and output quality—consult our process engineers to design your customized corn storage and conveying system today.
Corn Grain Storage System Design and Steel Silo in Large Flour Milling Plant
When designing corn storage silo systems for a corn mill, engineers must balance capacity, load dynamics, and material characteristics. For example, corn bulk density typically ranges from 720 to 780 kg/m³, influencing wall thickness and discharge angle design. A 1,000-ton silo with a height-to-diameter ratio of 2:1 provides both efficient aeration and material flow.
Advanced temperature and moisture control in silo systems rely on NIR (Near-Infrared Reflectance) sensors and automated ventilation. In a 10,000-ton facility, such systems can reduce microbial growth risk by 30–40% annually. Equally vital are explosion-proof components that comply with ATEX and NFPA 68 standards, particularly in pneumatic transfer lines where fine dust concentrations exceed 60 g/m³.
| Design Aspect | Standard Range / Value | Engineering Significance |
|---|---|---|
| Bulk Density | 720–780 kg/m³ | Determines wall stress & discharge geometry |
| Aeration Rate | 7–10 m³/min·ton | Prevents hot spots and mold |
| RH Control | ≤65% | Ensures safe long-term storage |
| Temp Control | ≤28°C | Reduces spoilage and condensation |
| Explosion Design | ATEX Zone 20/21 | Safety compliance for dust-prone areas |
Effective automation reduces manual inspection time by 60% and prevents losses exceeding 1% of stored volume per year.
Build smarter, safer, and more efficient corn silo systems—contact our engineering team to receive your tailored design blueprint.

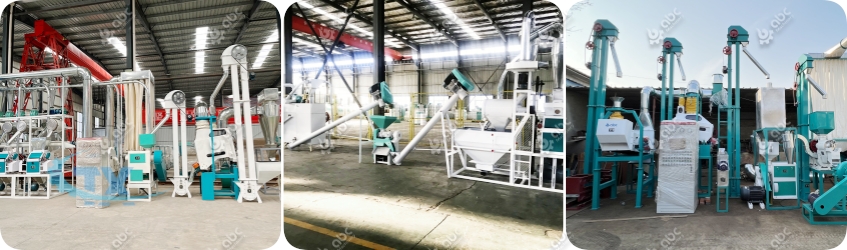

Bucket Elevator and Screw Conveyor Used in Small Medium Corn Flour Milling Plant
Selecting the right conveying equipment determines both system efficiency and maintenance cost. In a corn mill, conveying systems must support throughput rates from 20 to 120 tons/hour while minimizing grain breakage.
Equipment Comparison Table
| Equipment Type | Capacity (t/h) | Best For | Energy Use (kWh/t) |
|---|---|---|---|
| Belt Conveyor | 60–120 | Horizontal transfers | 1.5–2.0 |
| Bucket Elevator | 30–90 | Vertical lifting | 2.5–3.0 |
| Screw Conveyor | 10–40 | Controlled dosing | 3.0–3.5 |
Energy-efficient conveying system designs adopt variable-frequency drives (VFDs) and sealed housings, improving system energy performance by up to 15%. The bucket elevator vs screw conveyor decision often depends on elevation height and material fragility—screw types are ideal for short distances under 10 meters, while bucket elevators can lift up to 40 meters with low grain damage rates (<1.5%).
Get Your Customized Conveyor System Design Blueprint – Contact Us Now.

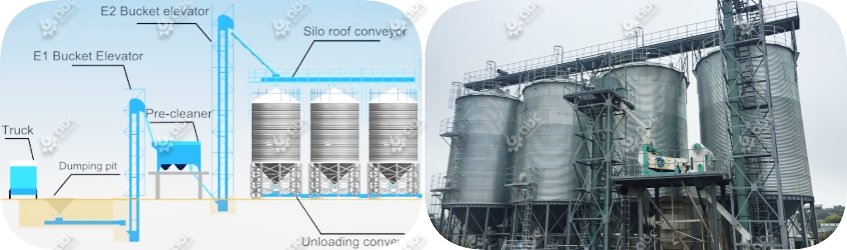

A truly integrated corn mill system design requires coordination between mechanical, electrical, and automation teams. Centralized control via PLC (Programmable Logic Controller) ensures real-time monitoring of silo levels, conveyor speeds, and dust extraction systems. Integration with MES (Manufacturing Execution System) enables full traceability of every batch, from raw corn intake to flour output.
During installation, alignment tolerance between silo outlet and conveyor inlet must stay within ±5 mm to avoid leakage. Maintenance intervals of 2,000–2,500 operating hours are standard for gearboxes and bearings in heavy-duty conveying lines.
By employing silo and conveying automation control, plants achieve smoother logistics and up to 10% improvement in operational uptime.
Partner with us to implement end-to-end material handling systems that elevate your corn mill project efficiency.
In conclusion, the synergy between corn mill process engineering and corn storage silo system design defines modern milling performance. From structural design to automation, every decision influences plant reliability, energy use, and long-term profitability.
