Corn Mill Factory Building Design and Ventilation Planning

Corn Mill Factory Design and Ventilation Planning

General Principles of Corn Mill Factory Building Design

Efficient corn mill factory building design begins with adherence to industrial construction codes such as ISO 9001:2015 for quality management and EN 1090 for steel structure safety. These standards ensure that a corn mill operating at 80–200 tons per day maintains optimal safety and structural reliability. The facility’s internal zoning directly influences material flow efficiency and contamination control, especially when handling fine corn flour with particle sizes below 150 µm.

A well-planned corn mill building layout divides the facility into raw material receiving, milling, packaging, and warehouse zones. Each area should maintain a minimum clearance of 3 meters for equipment mobility and maintenance access. Production flow should follow a linear or semi-circular route to minimize backtracking, with conveyor systems (operating at 0.8–1.2 m/s) linking stages efficiently.

Proper zoning and safety-focused architecture not only prevent contamination but also enable streamlined equipment maintenance cycles averaging 1,000 operational hours. Integrating digital control rooms and Manufacturing Execution Systems (MES) helps synchronize milling, packaging, and storage, reducing material handling time by up to 25%.

Enhance your facility’s productivity and safety—partner with our engineering team to design a compliant, high-efficiency corn mill building today.

Corn Mill Factory Equipment Layout and Spatial Optimization Strategies

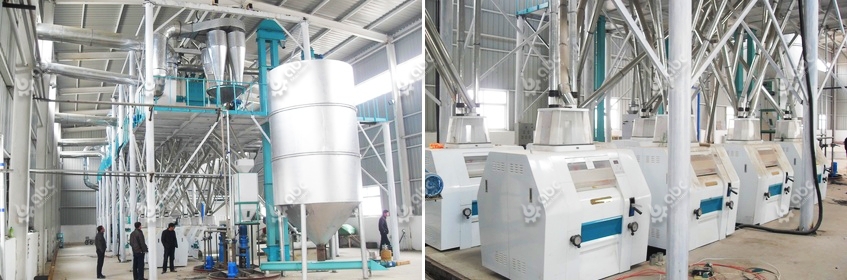

Corn Mill Engineering Project Success

Optimizing equipment layout is the heart of every corn mill factory building design. The machinery arrangement defines workflow efficiency, maintenance accessibility, and vibration control. A 500 m² milling floor can accommodate up to 10 roller mills, 2 purifiers, and 4 plan sifters if designed with a 1.5-meter minimum aisle clearance.

Equipment Layout Logic and Workflow Integration

Efficient corn mill equipment layout follows the logic of process flow: raw corn intake → cleaning → conditioning → milling → sifting → packaging. Each machine’s position must minimize product transfer distance—ideally under 8 meters—to reduce frictional losses. For a 150-ton/day mill, gravity-fed vertical alignment can reduce energy use by 10–12%.

Key Machinery Arrangement Data

Space Optimization and Structural Engineering

In modern corn milling plants, spatial optimization often relies on a multi-story structure that utilizes gravity flow. Typically, cleaning and conditioning are arranged on the upper levels, milling machines are positioned at mid-level, and finished product handling or packaging is placed on the ground floor. Vertical transport systems with 5-ton/hour bucket elevators integrate well with modular floors reinforced to 8 kN/m² load capacity.

Proper layout ensures not only efficient operation but also prolonged machinery lifespan exceeding 15 years under continuous 24-hour production cycles.

Smart Space Design Considerations

• Flow-Oriented Design: Align machinery along the raw-to-finish flow for minimal cross-movement.
• Maintenance Corridors: Design 1.2–1.5 m aisles for equipment access and servicing.
• Vertical Integration: Adopt multi-floor layouts for gravity-assisted transport.
• Energy Efficiency: Optimize air duct routes and minimize material transfer lifts.
• Safety Provisions: Include escape routes every 30 meters and anti-slip floor coatings.

Get your customized corn mill equipment layout blueprint—contact our design engineers to build performance-driven spaces that elevate production efficiency.

Corn Flour Mill Plant Ventilation and Dust Control System Planning

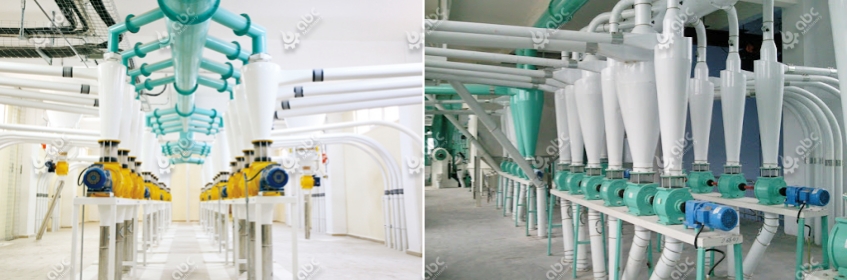

Dust Control System in Commercial Maize Flour Mill Plant

Effective corn mill ventilation design prevents fine particulate accumulation and ensures clean airflow across all corn milling process zones. Each milling room should maintain an air exchange rate of 12–15 times per hour. Dust control systems integrate cyclone separators (98% efficiency) and bag filters capable of capturing particles down to 5 µm.

Energy-saving fans with a capacity of 8,000–12,000 m³/h should be positioned near sifter zones, maintaining air velocity between 10–12 m/s. Recirculated airflow systems can lower HVAC energy consumption by 20%. Proper duct routing ensures a balanced air pressure differential of ±50 Pa across enclosed zones.

Optimize air quality and energy savings—consult our engineers for advanced corn mill ventilation and dust control solutions.

Factory Structure and Material Selection

A robust industrial corn mill structure ensures long-term stability under heavy mechanical loads. Steel structures are ideal for flexibility and faster installation—erected within 60–90 days for medium-sized facilities—while reinforced concrete provides superior vibration damping and fire resistance.

Building materials for corn factories should prioritize corrosion resistance; epoxy-coated steel or galvanized beams (minimum 80 µm thickness) are recommended. Foundations must support concentrated loads of up to 10 tons/m² beneath heavy roller mills.

For insulation, wall panels with R-values above 4.0 m²·K/W reduce thermal losses by 30%. Moisture barriers with polyethylene membranes extend building life in humid zones.

Secure a durable, low-maintenance structure for your corn mill—speak with our structural engineers to specify the right materials for your next project.

In summary, an optimized corn mill facility integrates precise building design, efficient layout, and advanced ventilation systems to enhance safety and performance. By implementing these strategies, operators can achieve higher throughput, reduced maintenance, and consistent product quality across every phase of milling.
